Alderon Controls The Doublemax 7633

Alderon Controls
The Doublemax
* Overnight Shipping Available! Part #:7633

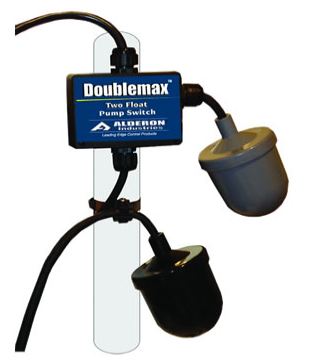

The Doublemax is a two float operated, wide angle pump switch used to automate pumps for water and wastewater applications. Two mechanical float switches are combined in one box to give you maximum control of your pumping application .The Doublemax is designed to operated in confined spaces and offers a pumping range between 4 and 60.

15amp rated switch; 4-60 inches of pumping range; Designed for confined applications; Pump up or pump down models available; Piggy-back plug or hardwire configurations; Tether guide on float gives pumping range guidelines; 120 or 230 VAC switches; 3 year warranty.

The Doublemax is rated for 15amps. Other two float systems are only rated for 13amps

Key Features

• Pump down
• 15 in. cable
• 120 VAC plug
• Temp: 0-140 F
• Float housing; 3.25 in. x 4.55 in. length

Storm water pump stations are necessary to remove the excess of water during a rainstorm. They not only remove water, but removes waste and other solid materials. Pump Express stocks several brands and types of storm water pumps.

Additional Information (PDF):

The Doublemax Specification
The Doublemax Product Brochure
